Description

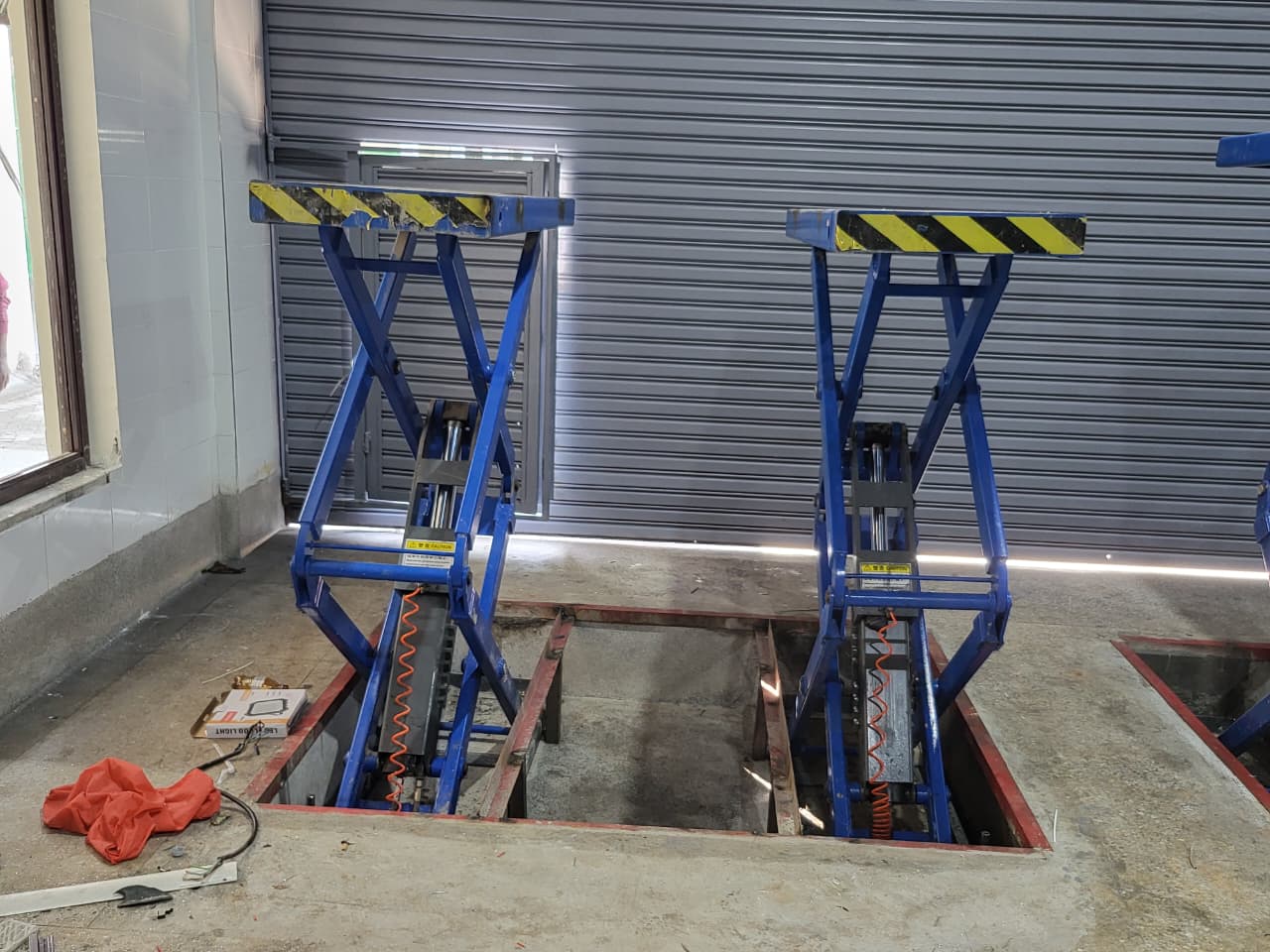

A hydraulic scissor lift that is installed below the shop floor level, sitting in a concrete pit. When fully lowered, its platform is flush with the surrounding shop floor, creating a completely flat, unobstructed surface.

How It Works
The lift mechanism—comprising scissor arms, hydraulic cylinders, and the platform—is housed within a constructed pit. Hydraulic pressure extends the scissor arms, raising the platform and vehicle straight up. When lowered, it disappears into the floor.

Key Specifications & Design

Installation: Requires a custom-built concrete pit in the workshop floor. This is a permanent, structural installation.

Platform Height (Lowered): Truly flush with the floor (not 1.2M or 1.8M high—those terms refer to above-ground models). The “small” typically refers to its capacity and platform size relative to larger in-ground models.

Lift Capacity: Common capacities range from 6,000 to 9,000 lbs for passenger vehicles.

Platform Size: Often a “two-post” or open-center design, providing clear undercarriage access.

Rise Height: Provides a standard working height (e.g., 1.6-1.8 meters) when fully extended.

Safety: Integrated mechanical locking bars that engage automatically at set heights.

Primary Advantages & Uses

Perfectly Flush Floor: Eliminates any ramp or lip. The ultimate solution for extremely low vehicles (supercars, hypercars) and for shops where a completely flat floor is paramount (e.g., for rolling equipment, alignment racks).

Maximum Bay Flexibility: When lowered, the bay is a clean, open floor space usable for parking, detailing, or other work.

Superior Stability: The in-ground installation provides immense structural rigidity, ideal for precise work like alignments or heavy-duty drivetrain service.

Unobstructed Access: No columns or arms block access to any part of the undercarriage.

Critical Safety & Operational Rules

Pit Integrity & Maintenance is #1: The pit must have proper drainage, waterproofing, and lighting. Regularly inspect for water accumulation, hydraulic fluid leaks, rust, and structural cracks. A failed pit is a catastrophic hazard.

Pit Covering When Not in Use: The pit must be covered when the lift is not in use to prevent falls, debris accumulation, and to contain any potential fluid leaks.

Clear the Pit Perimeter: Before operation, ensure no tools or equipment have fallen into the pit and that the scissor arm sweep area is clear.

Lock Before Working: Always verify the mechanical safety locks are engaged before entering the pit area or working under the vehicle. Never trust hydraulics alone.

Beware of Fumes: Ensure adequate ventilation in the pit area to prevent the accumulation of flammable or toxic vapors from fuel or fluids.

Professional Installation & Sign-off: Installation must be performed by certified professionals, including proper reinforcement of the pit walls and floor. Final engineering sign-off is crucial.

Specialized Service Required: Hydraulic and mechanical repairs require technicians who can safely work in and around the confined pit space.

Bottom Line
An in-ground small scissor lift is the premium, permanent installation for high-end dealerships, specialty performance shops, and alignment centers where a flawless floor and ultimate low-clearance access are required. It represents the highest level of shop integration and convenience but comes with the highest installation cost and ongoing maintenance responsibility for the pit environment. Safety revolves almost entirely around pit management and strict lock engagement.
