Description

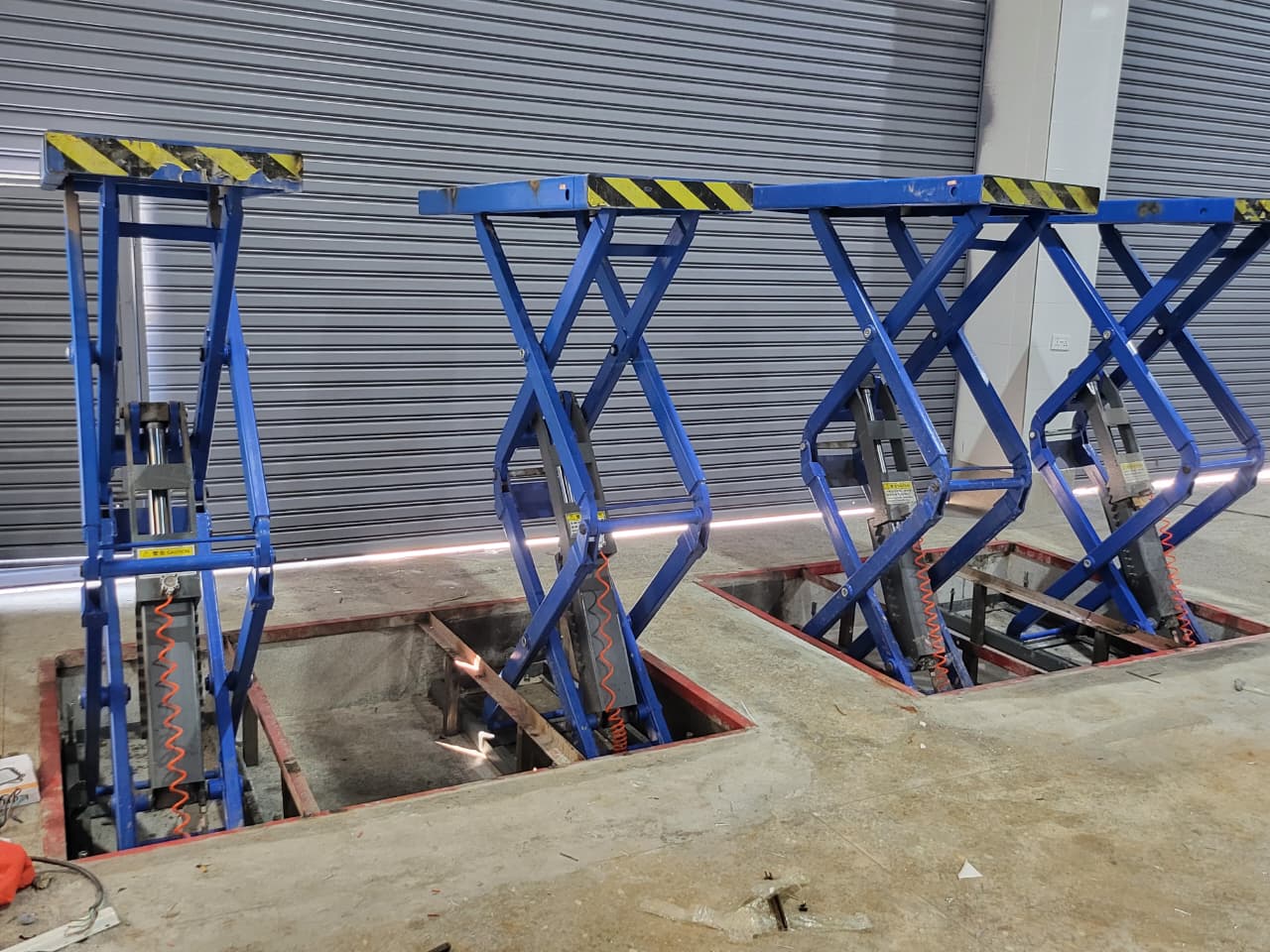

A high-capacity, heavy-duty hydraulic scissor lift installed permanently below the workshop floor in a large concrete pit. Designed to lift large trucks, buses, commercial vehicles, and heavy equipment, providing flush-floor convenience at an industrial scale.

How It Works
The massive scissor mechanism and platform are housed within a deep, reinforced pit. Industrial hydraulic cylinders extend the heavy-duty scissor arms, raising the loaded platform straight up to working height. When retracted, the platform sits flush with the shop floor, leaving a completely clear, level surface.

Key Specifications & Design

Installation: Requires a major civil engineering project—a large, deep, reinforced concrete pit with integrated drainage, lighting, and often sump pumps.

Capacity: High capacity, typically ranging from 15,000 lbs up to 120,000+ lbs (60+ tons) for the largest models used for fire trucks or buses.

Platform Size: Very large platform to accommodate dual-wheel trucks, long wheelbases, and heavy equipment. Common sizes start at ~10′ x 30′ and go up.

Flush-Mount Design: When lowered, the shop floor is completely flat and unobstructed, allowing the heaviest vehicles to roll on and off effortlessly.

Power System: High-volume hydraulic power unit (HPU), often with 3-phase electric motors and large reservoir tanks.

Safety: Redundant hydraulic systems, oversized mechanical locking bars (often manual engagement due to size), and pit safety systems.

Primary Applications

Fleet Maintenance: For city buses, delivery truck fleets, and school buses.

Heavy Truck & Equipment Shops: Servicing semi-trucks, dump trucks, and refuse vehicles.

Municipal & Emergency Vehicle Facilities: Fire stations, ambulance depots.

Industrial Plants: For maintaining large in-house machinery and vehicles.

Critical Safety & Operational Rules

Engineering & Professional Installation is Non-Negotiable: The pit design, reinforcement, and lift installation must be signed off by structural and civil engineers. This is not a DIY project.

Pit Integrity is Paramount: Implement a strict schedule for inspecting pit walls, drainage, waterproofing, and sump pumps. Water or corrosion in the pit compromises structural safety.

Mandatory Locking Protocol: Due to the enormous stored energy, mechanical locks must be manually verified and engaged before any personnel enter the pit or work under the load. Never work under a load held only by hydraulics.

Strict Load Distribution & Centering: Vehicles must be driven on carefully and centered. The lift’s capacity rating assumes even distribution. Off-center loads can damage the mechanism.

Comprehensive Pit Safety: The pit area must be guarded or covered when not in use to prevent falls. Adequate lighting and air quality monitoring (for fumes) are essential.

Trained Operators Only: Only personnel trained on the specific model should operate it. This includes understanding the control panel, lock systems, and emergency procedures.

Pre-Operation Inspection: Daily checks of hydraulic lines for leaks, fluid levels, lock mechanisms, and the cleanliness/debris status of the pit and platform are mandatory.

Regular Professional Servicing: The hydraulic system and mechanical components require scheduled servicing by factory-trained technicians due to their scale and complexity.

Bottom Line
A big in-ground scissor lift is a major industrial asset and infrastructure investment that defines a heavy-vehicle service facility. It offers unparalleled flush-floor convenience and stability for the largest vehicles. However, it comes with significant permanent responsibilities: rigorous engineering, meticulous daily safety checks, stringent pit maintenance, and highly trained operation. Its safe use is a serious discipline, not just a procedure.
