Description

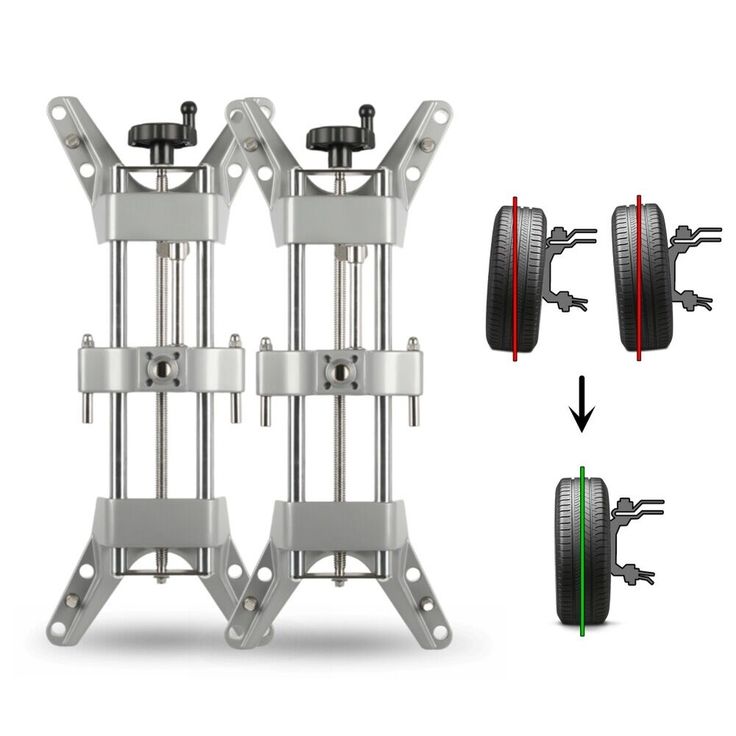

Specialized metal brackets or fixtures that are securely clamped to a vehicle’s wheel rim. They serve as the critical attachment point for the sensors or measurement heads used during a wheel alignment procedure.

How They Work
The clamp firmly mounts to the wheel’s rim (not the tire). A precision alignment sensor or reflector is then attached to the clamp. This setup allows the alignment machine’s cameras or lasers to take highly accurate measurements of the wheel’s position relative to the vehicle’s chassis and other wheels.

Key Features & Types

Four Required: One clamp is needed for each wheel being measured.

Universal vs. Vehicle-Specific: Most are universal, adjustable to fit a wide range of rim diameters and widths.

Magnetic or Mechanical: High-end clamps use strong magnets for quick mounting on steel rims. Others use adjustable arms and a tightening mechanism (knob or lever) to grip the rim securely from the inside.

Mounting Style: Must grip the rim without touching the tire sidewall to avoid false readings.

Main Purpose
To provide a perfectly rigid and repeatable mounting point for alignment sensors, ensuring that all measurements of camber, caster, toe, and steering axis inclination are accurate and reliable.

Critical User Rules

Clean the Rim: The wheel rim must be free of dirt, heavy rust, or damage where the clamp attaches.

Secure Mounting: The clamp must be rock-solid with zero movement or play. A loose clamp guarantees incorrect measurements.

Clear the Tire: Ensure the clamp arms are gripping the rim’s inner edge and are not pressing against the flexible tire sidewall.

Handle with Care: Alignment clamps are precision tools. Dropping or damaging them can compromise accuracy.

Follow System Instructions: Specific mounting procedures can vary by alignment machine brand (Hunter, John Bean, etc.).

Bottom Line
Wheel alignment clamps are the essential link between the vehicle and the alignment computer. Their sole job is to hold the measurement sensor perfectly still, making their secure and correct installation the most important first step in any accurate wheel alignment.
