Description
Capacity: 4.0T
Height: 3900mm
Inner Width: 2860mm
Total Width: 3450mm
Lifting Height:1700mm
Motor power:380V / 220V 2.2kw
Descending/Rise Time:30s/60s Motor
Total Steel block,:square pipe bracket
Feature
- Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
- Japanese oil sealing elements, oil pipe explosion protective device, overload protection, international brand oil pipe
- Direct drive twin cylinders, with safety steel wire as synchronization
- Polymer wear-resistance slider
- Single side safety control, arm locks with tooth type ratchet, multi-safety device, more reliable
- Gate type, for operation more easy, no obstruction onto the floor
- Roof protection safety device, automatic arm lock by built in ratchet tooth
- Shot blasting and high temperature baking powder coated surface finish
|
Model
|
SHL-2-240L
|
Optional
|

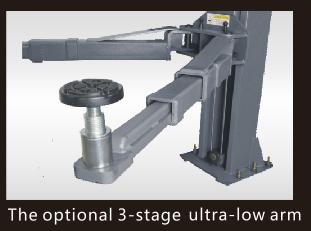

3 stage lower telescopic arm
|
|
Lift Capacity
|
4.0T
|
Power of motor
|
2.2KW
|
|
Min height(mm)
|
85/105MM
|
Power supply
|
220V/380V
|
|
Car max lifting height(mm)
|
1870
|
Height of the post(mm)
|
3900
|
|
Rise time(appro.)
|
50s
|
Inner Width between posts(mm)
|
2860
|
|
Drop time(appro.)
|
30s
|
Total width
|
3420
|
