Description

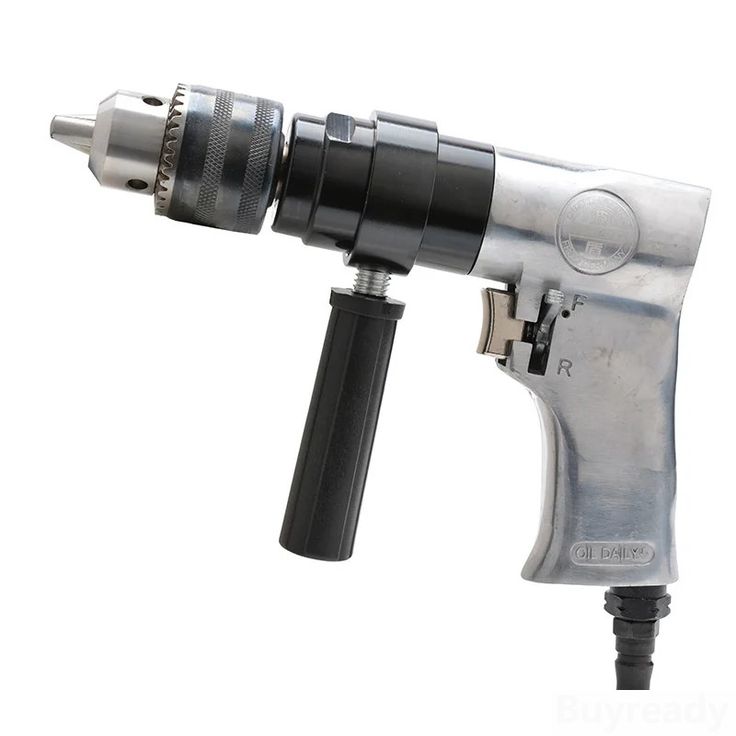

A hand-held power drill powered by compressed air, used for drilling holes, driving fasteners, and mixing materials in automotive, metalworking, and industrial settings.

How It Works
Compressed air flows into the tool, driving a piston or vane motor that rotates a geared chuck. The drill’s speed and torque are controlled by the air pressure and a trigger valve.

Main Types

Pistol-Grip Drill: Most common style, held like a pistol. Balanced for general-purpose drilling and driving.

Angle Drill (Right-Angle Drill): Head is offset at 90°. Designed to drill in tight, confined spaces where a straight drill can’t fit.

Straight Drill (Spade-Handle): Long, inline body with a T-handle for two-handed control and maximum thrust for large holes in metal.

Reversible Drill: Features a forward/reverse lever, making it useful for both drilling and removing screws/bolts.

Key Advantages

High Power & Lightweight: Delivers more torque relative to its size and weight than many electric drills.

Variable Speed Control: Speed is directly proportional to trigger pressure, allowing for excellent control.

Durable & Simple: Fewer parts to fail, handles continuous heavy use and stalling without overheating or damage.

Safe: No risk of electric shock, and the air exhaust helps keep the tool cool.

Common Shop Uses

Drilling holes in sheet metal, body panels, or frames.

Driving self-tapping screws or installing/removing trim fasteners.

Mixing body filler, adhesives, or paint with a mixing paddle.

Using wire wheels, buffing pads, or hole saws with the right attachment.

Critical User Rules

Clean Air Supply is Non-Negotiable: Requires dry, regulated air (typically 90 PSI) with an inline filter/lubricator to prevent rust and wear.

Secure the Chuck: Always use the chuck key to tighten bits securely. Hand-tightening is not safe for pneumatic torque.

Use Correct Speed & Pressure: Start slow, let the bit cut. Excessive pressure can break bits and damage the workpiece.

Wear PPE: Safety glasses are mandatory. Hearing protection is recommended due to air exhaust noise.

Daily Maintenance: Add 3-5 drops of pneumatic tool oil into the air inlet before connecting it each day to lubricate the internal motor.

Bottom Line
The pneumatic drill is a robust, high-torque workhorse for demanding shop environments. Its power, control, and durability make it ideal for metal fabrication and automotive repair, but it depends entirely on a clean, lubricated air supply for performance and longevity.
