Description
Max. weight of wheel:70kg
Power supply:100/230V 1PH
Balancing accuracy:1g
Balancing speed:7sec
Rim diameter:10″-24″
Rim width:3″ -6″
Frequency:50/60HZ
Max. Wheel diameter:1100mm
Net weight:95kg
Rotate speed:90/130rpm
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Max. weight of wheel | 70kg | Rotate speed | 90/130rpm |
| Power supply | 100/230V 1PH | Rim diameter | 10″ – 24″ |
| Frequency | 50/60HZ | Rim width | 3″ – 6″ |
| Balancing accuracy | 1g | Max. Wheel diameter | 1100mm |
| Balancing speed | 7sec | Net weight | 95kg |
Product feature

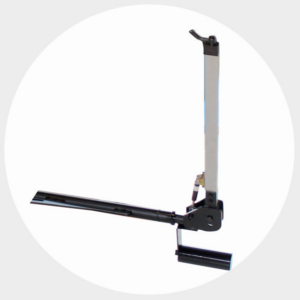

. Manual measure the wheel diameter and distance.
. Dynamic and static modes balance function.
. Electrical machine automatic stop when finish the measurement.

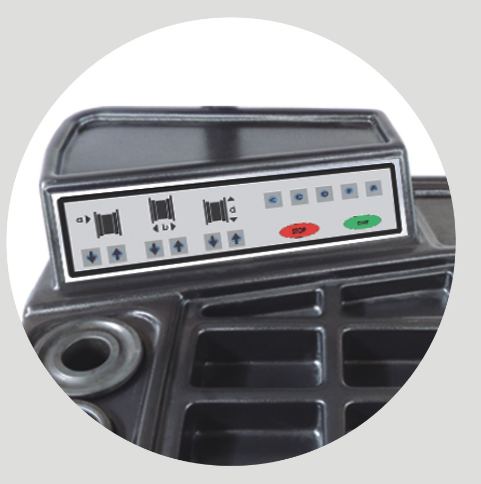

. Double LED display screen separate show the wheel inside and outside balance numerical.
. Multiple combination of aluminum alloy rim measurement mode.
. Self calibration and diagnose function.

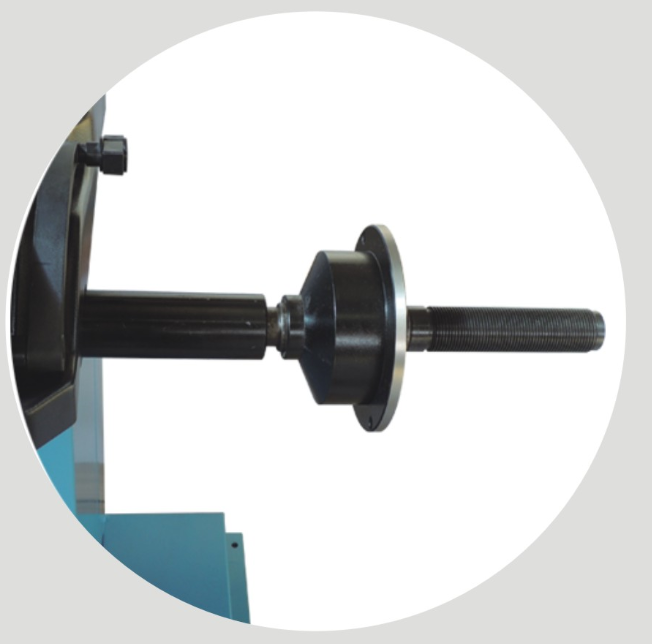

. Length 355mm transmission shaft, Suit for different size wheel.
. Using steel plate combined cabinet, Sturdy and durable structure, can reduce electric machine working resonance to promote high measure accuracy.
. Standard cone quickly locked nut.
