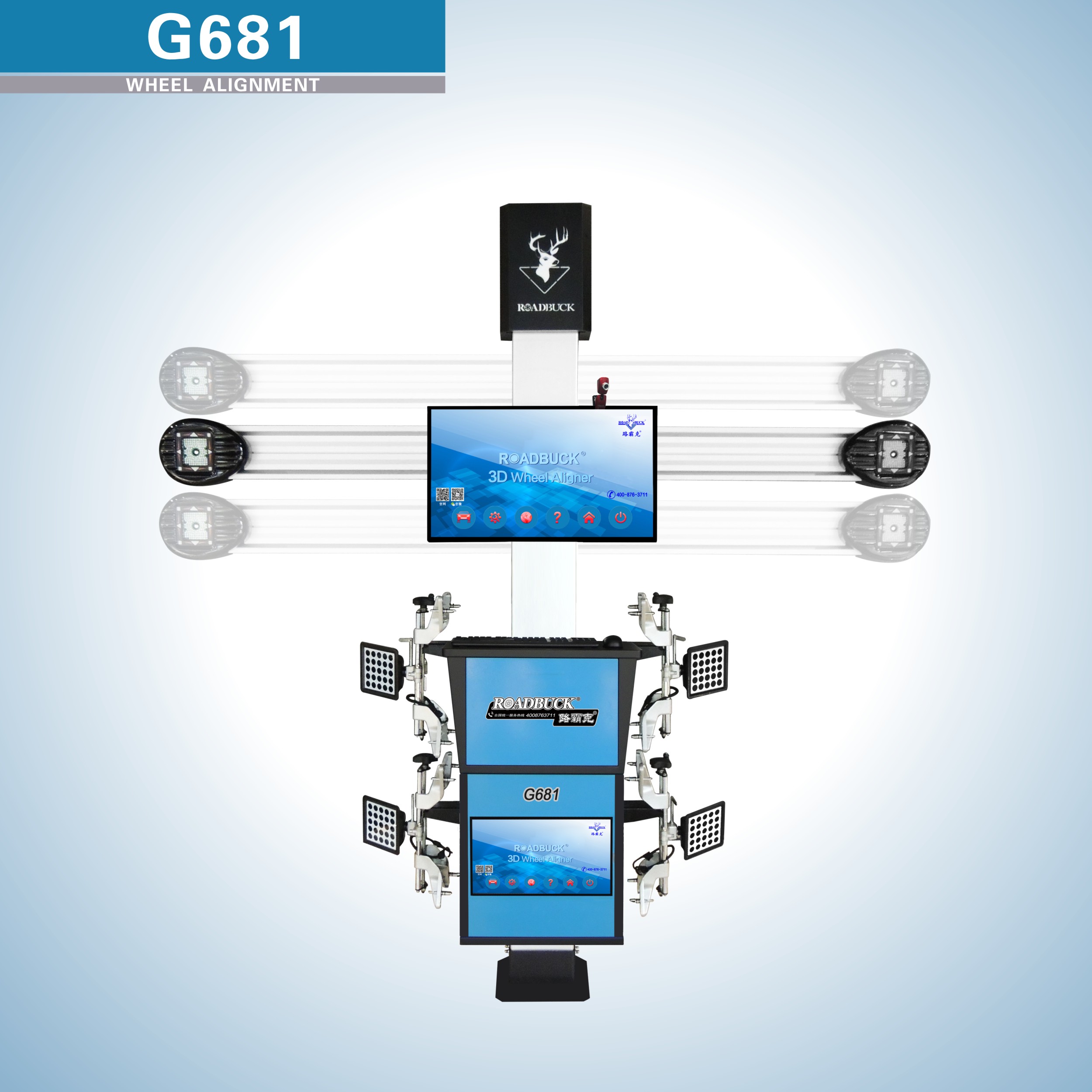

Description

Feature:

• Standard fixed type 32 and 19 inch LCD

• 5,000,000 HD camera • Double display LCDs

• Exceed 25,000 database

• Multi-Language

• Option: table PC

Parameters:

• Power: 220V

• Wheel Size: 12″-24″

• Monitor: 32″ & 18.5″

• Camera Resolution: 5,000,000 P

Measurement and readings:

1. Toe/Camber/ Caster/S.A.I (or KPI)

2. Thrust Angle/Chassis wheelbase/wheel track/Rolling Radius/ Set-Back

Product feature

1. Chinese Windows OS, operation process can be easily guided by “Next step” instruction.

2. Exceed 60,000 database around the world and with a lifetime update service.

3. Repeat measurement accuracy is +0.03, which be a world’s leading level.

4. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle, Setback angle, Max turning angle, Wheel tread, Wheel base, Wheel rolling radius.

5. Android cell phone and laptop are supported to show the vehicle measurement data, more convenient for operator.

6. Humanized software design, animation video can be used to help technician more quickly complete the operation.

7. Ultra-low chassis and reft vehicle–Volks Wagen and Audi, XLWB and with ESP function vehicle are also can be measured.

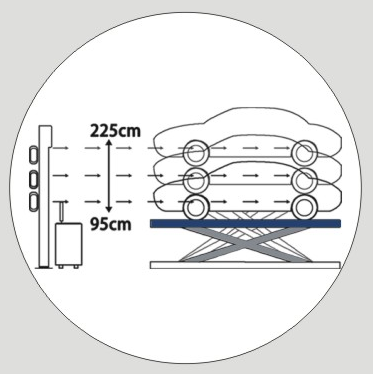

8. Secondary jack-up function, which can be used to more conveniently help technician adjust Camber.

Product details

3D measurement technology – which based on car body, more precision and stable.

Camera measurement system – using two camera and work together with four target disks, which is a revolutionary measurement method.

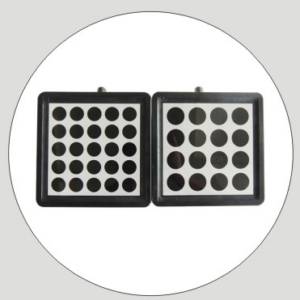

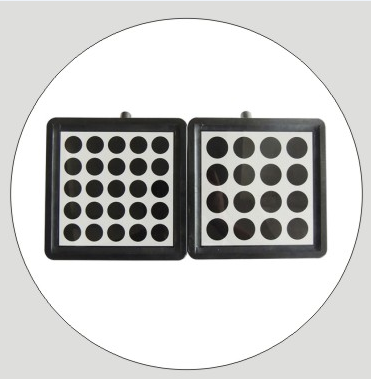

• Target disk – there isn’t electronic components inner and instead of traditional electronic sensor. It can more efficiently to eliminate the equipment error which caused by circuit.

• Calibration- Only need once RCP calibration after installation, process simple and repeated calibration is unnecessary.

• Software system- Simple operation, measurement can be finished in 2 minutes.

Advantage:
Wireless, no electronic sensor and components, can avoid some questions caused by sensor error.
Measurement precision is not affected by the unbalance of vehicle and car lift. Wheel and rim compensation is unnecessary for measurement process. The advantage increase the accuracy and reliability of measurement, improve the working efficiency.
