Description

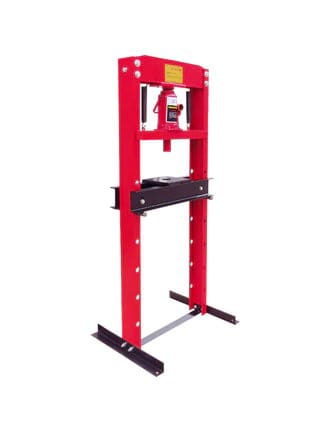

A heavy-duty, floor-mounted mechanical or hydraulic press used to apply immense, controlled force to install or remove interference-fit parts like bearings, bushings, gears, and U-joints.

How It Works
A strong steel frame supports a movable hydraulic ram. The component (e.g., a wheel hub) is placed on a support table. The ram is activated (manually, with a pump, or with air power), pressing a tool or adapter against the part to push the bearing in or out with precise alignment.

Key Components

Frame: Heavy H-shaped or C-shaped steel structure (12-ton, 20-ton, 50-ton, etc. capacity).

Hydraulic Ram: The central force-applying cylinder.

Pump: Hand-operated, air/hydraulic, or electric pump.

Bed/Table: Adjustable height work surface with openings for parts and tools.

Press Accessories: Mandrels, adapters, bearing splitters, and receiving cups to fit different parts.

Primary Uses

Bearing & Bushing Service: Pressing wheel bearings, pilot bearings, suspension bushings in/out of knuckles and control arms.

Gear & Pulley Work: Installing/removing press-fit gears, pulleys, and sprockets.

U-Joint Replacement: Pressing universal joints out of drive shafts.

General Pressing & Straightening: Straightening brackets, pressing pins, etc.

Critical Safety Rules

Shield the Press Zone: ALWAYS use the included safety shield or cage, or stand to the side. Pressed parts can shatter or explode under tension, sending metal fragments flying.

Secure the Workpiece: The part must be solidly supported directly under the ram’s force path. Use proper-sized adapters to prevent slipping.

Use Correct Adapters: Adapters must be the right size to contact the outer race when installing (pushing on the race being installed) or the inner race when removing, to avoid damaging the bearing.

Center the Force: The ram, adapters, and workpiece must be aligned. Off-center force can break tools, damage parts, or cause the workpiece to shoot out.

Apply Force Gradually: Pump slowly and steadily. Sudden, high force can cause catastrophic failure.

Inspect Tools & Frame: Regularly check adapters for cracks and the frame for any stress or damage.

Know When to Stop: If the part is not moving with reasonable pressure, stop. Re-check setup and alignment; do not exceed the press’s rated tonnage.

Bottom Line
A bearing press is an essential, powerful, and dangerous shop tool for professional drivetrain and suspension work. It performs tasks impossible by hammering, ensuring parts are installed squarely and without damage. Safety is paramount—proper setup, correct adapters, and the use of a safety shield are non-negotiable to prevent serious injury from flying metal.
