Description

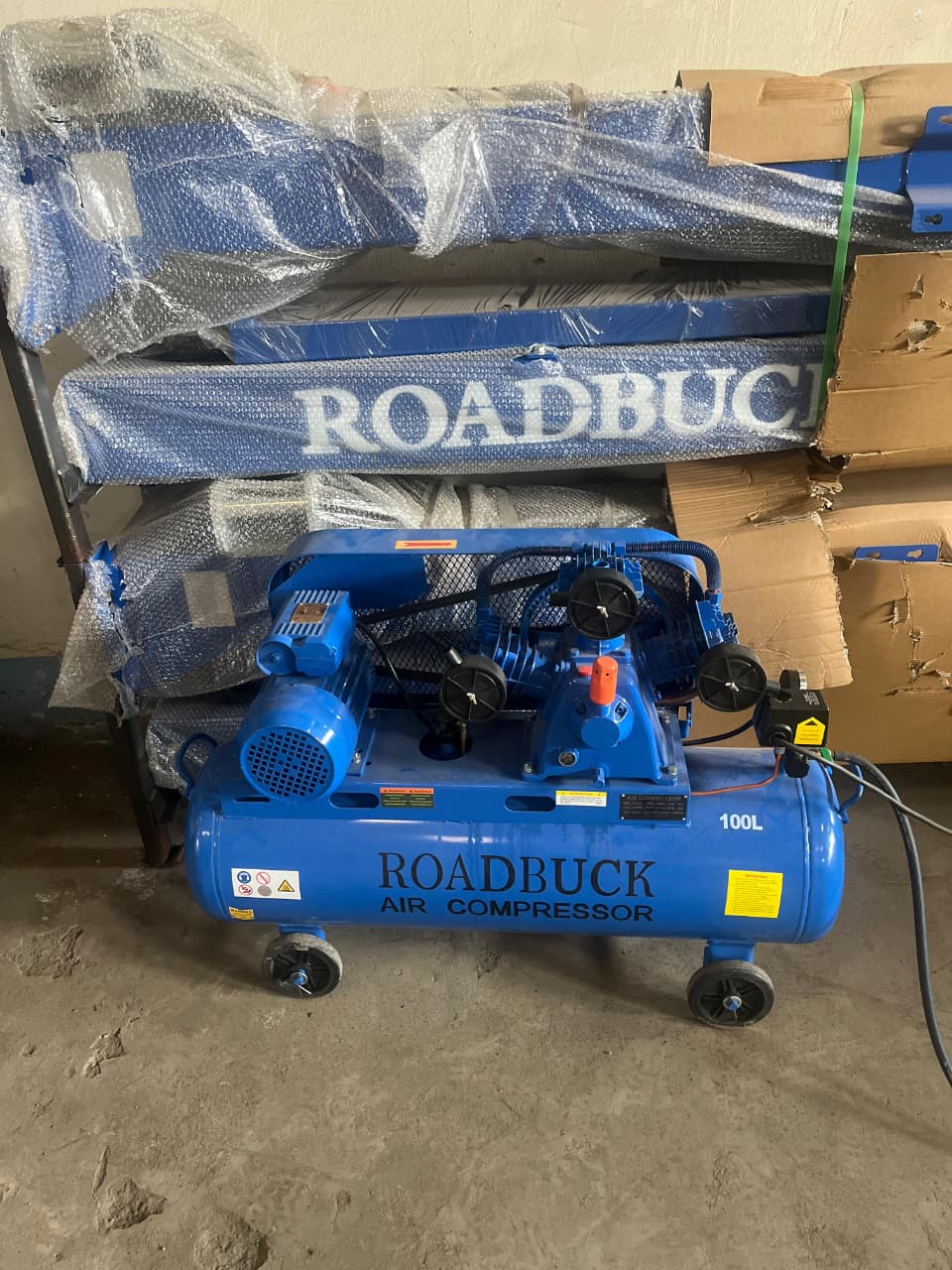

A mid-sized, industrial-grade reciprocating (piston) air compressor. The designation typically breaks down as:

100L: A 100-litre (≈26-gallon) air storage tank.

8: Delivers approximately 8 cubic feet per minute (CFM) of compressed air output.

B: Often denotes a belt-driven pump and motor system.

How It Works
An electric motor (single or three-phase) drives a crankshaft via belts. The crankshaft moves pistons inside cylinders, drawing in air, compressing it, and forcing it into the storage tank. A pressure switch automatically starts and stops the motor to maintain a set pressure range (e.g., 100-120 PSI).

Key Components & Specs

Pump: Cast iron, oil-lubricated, belt-driven. Belt drive runs cooler and quieter than direct drive, and is easier to service.

Motor: Often a 3 HP (2.2 kW) induction motor for this CFM/tank size. May be single-phase (230V) for smaller shops or three-phase for industrial use.

Output: ~8 CFM at 90 PSI is a common rating. This is the critical spec for running tools.

Pressure: Maximum working pressure typically 145 PSI (10 bar).

Duty Cycle: Designed for continuous duty in a workshop setting, suitable for frequent but not constant heavy tool use.

Primary Workshop Applications

Powering 1-2 Intermittent Tools: Can comfortably run an impact wrench (½”), air ratchet, die grinder, or paint gun one at a time with adequate recovery.

Small to Medium Auto Shops: Ideal for general mechanical repair, tire service, and light bodywork.

Garages & DIY Workshops: A powerful all-rounder for serious home use.

Pneumatic Systems: Operating small machinery, clamps, or blow-off guns.

Critical Advantages

Belt-Drive Efficiency & Longevity: Runs cooler, quieter, and generally lasts longer than an equivalent direct-drive compressor.

Good Air Reserve: The 100L tank provides a useful buffer for short bursts of high-demand tools, reducing motor cycling.

Industrial Durability: Cast iron pump is robust and designed for frequent use.

Critical Safety & Operational Rules

Adequate Electrical Supply: Ensure the circuit can handle the motor’s starting amperage (often 2-3x its running amps). Use correct gauge wiring and a dedicated circuit.

Ventilation & Placement: Install in a cool, clean, and well-ventilated area. The pump needs cool air intake and gives off heat. Keep away from flammable materials.

Drain the Tank Daily: Condensate (water) accumulates in the tank. Open the drain valve at the bottom of the tank every day after use to prevent internal rust and failure.

Check & Change Pump Oil: Monitor the oil level in the pump’s sight glass. Change the compressor oil according to the manufacturer’s schedule (typically every 500-1000 hours).

Use an Air Filter/Regulator/Lubricator (FRL): At the outlet, install a filter (removes water/oil), regulator (sets tool pressure), and lubricator (adds oil for air tools) for clean, controlled air.

Never Adjust the Pressure Switch Safety Valve: The pressure relief valve is a critical safety device. If it vents, diagnose the cause (e.g., faulty pressure switch), do not disable it.

Allow Cooling Before Servicing: Let the compressor cool down completely and depressurize before performing any maintenance.

Bottom Line
The 100L-8B belt-drive compressor is a reliable, versatile workhorse for a professional small shop or serious enthusiast. Its 8 CFM output and 100L tank strike a practical balance for common pneumatic tools. Its longevity and performance depend almost entirely on proper installation, daily tank drainage, and regular oil maintenance. It is a foundational piece of shop infrastructure.
